Bimetallic Composite Wear-Resistant Steel OEM/ODM

Home / Products / Coal Power Series / Bimetallic Composite Wear-Resistant Steel

Bimetallic Composite Wear-Resistant Steel Manufacturers

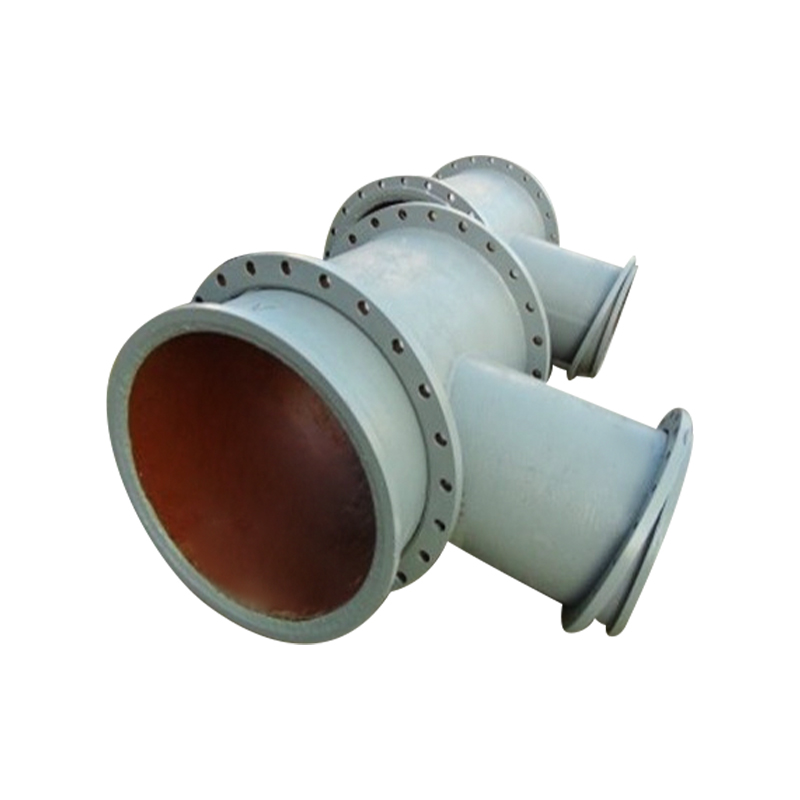

  • Tee
    Tee

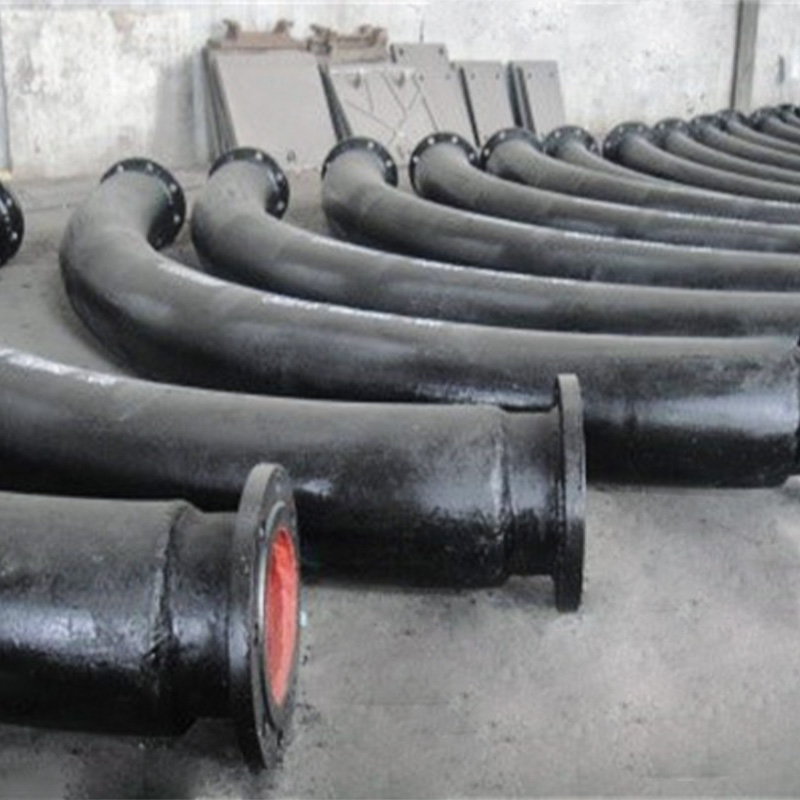

  • Elbow
    Elbow

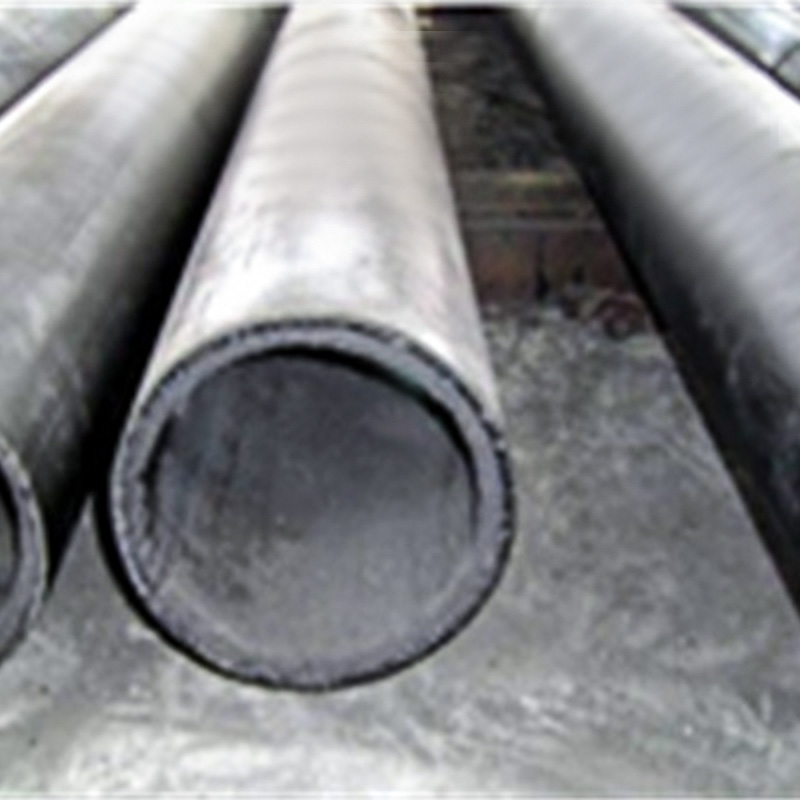

  • Straight Pipe
    Straight Pipe

The bimetallic composite wear-resistant pipe is a new type of wear-resistant pipe developed by our company. The outer wall is made of steel pipe, and the inner lining adopts lost foam static vacuum casting technology. High chromium alloy is cast to form white anti-wear alloy material, and high chromium cast iron material with martensite matrix is ​​obtained by heat treatment. This composite process is created domestically. In 2004, a utility model patent was applied for, with patent number ZL200420028011.2. It is mainly used for slag slurry transportation in thermal power plants; long-distance transportation of concentrate slurry, tailings slurry, etc. in the metallurgical industry.
Features:
1. Good wear resistance, giving full play to the wear resistance of high chromium cast iron (KmTBCr26Mo3CuRe).
2. High-pressure bearing, suitable for any pressure level. The inner lining is tightly combined with the outer layer, and a special process is adopted to form a solid-liquid combination between the composite layers to ensure operational reliability.
3. It has good resistance to mechanical shock and thermal shock.
4. Convenient installation and connection, and can be cut and welded arbitrarily by plasma cutting method.

Material grade and chemical composition

Grade

 C Si Mn Cr Mo Ni Cu S P
The matrix
layer		 Ⅰ 2.0-3.30 ≤1.20 ≤2.00 23.0-30.0 ≤3.00 ≤2.50 ≤2.00 ≤0.06 ≤0.10
Ⅱ 2.0-3.30 ≤1.20 ≤2.00 18.0-23.0 ≤3.00 ≤2.50 ≤2.00 ≤0.06 ≤0.10
Ⅲ 2.0-3.30 ≤1.20 ≤2.00 14.0-18.0 ≤3.00 ≤2.50 ≤2.00 ≤0.06 ≤0.10
Structural layer ≤0.25 ≤0.50 ≤1.20 ≤0.30 ≤0.15 ≤0.30 ≤0.30 ≤0.035 ≤0.035

Mechanical performance

Grade HRC Manufacturing Standards
Cast state Quenched state Soft annealed state
Ⅰ 50-58 ≥58 - Q/321282HZC 04-2010
Ⅱ -
Ⅲ - -
structural layer ≥441MPa
≥196MPa		 ≥25%
≥32%		 AKU≥100J/cm2

Beloni (Jiangsu) Pump Manufacturing Co., Ltd

  • 15+

    Years Industry Experience

  • 5000+

    Factory Area

  • 100+

    Skillful Employees

  • 30+

    Product Category

The company is located at No. 18, Jinqiuzhu Road, Xinfeng, Shengci Town, Jingjiang City, in the lower reaches of the Yangtze River. Pump products include magnetic pumps, axial flow pumps, horizontal self-priming pumps, fluorine-lined centrifugal pumps, chemical desulfurization pumps, horizontal centrifugal pumps, bottom pumps, double-suction pumps, slurry pumps, rotor pumps, acid-resistant and wear-resistant pumps, chemical centrifugal pumps, wear-resistant and corrosion-resistant mortar pumps, seal-free fully automatic self-priming pumps, petrochemical process pumps, high-pressure oil pumps, vertical pipeline pumps, screw pumps and other series. Main products of metallurgical equipment: rare earth heat-resistant steel series, rare earth wear-resistant alloy steel series, bimetallic composite wear-resistant steel series, wear-resistant ceramic patch series, wear-resistant arc baffle series, medium-speed coal mill series, stabilizing roller, sinking roller, furnace roller, guide plate, step-type heating furnace series.

Beloni Pump Industry currently has 80 employees, including 12 professional and technical personnel, 6 inspectors, more than 100 sets of various metal cutting equipment, computer CAD-aided design, advanced detection and measurement devices, large-scale special processing equipment, large-scale lifting equipment, etc. The company has the production conditions from design, casting, machining, assembly, and testing. The company has successively obtained ISO9001 quality system certification, ISO14001 environmental management system certification, ISO45001 occupational health and safety management system, and multiple AAA certifications in the pump and valve industry.

At present, the company's products have been widely used in petrochemical, coal mines, power plants, steel mills, agricultural irrigation and drainage, industrial water supply and drainage, municipal construction, sewage treatment, and other industries.

As China Bimetallic Composite Wear-Resistant Steel Manufacturers and Bimetallic Composite Wear-Resistant Steel Suppliers, the company provides industrial fluid safety delivery solutions for the global and domestic markets. It is a technology-based enterprise integrating chemical pump design, research and development, manufacturing, sales, and service. The company's quality-oriented and innovation-led business philosophy has been recognized by various users in the domestic and foreign markets; the company adheres to the core value of "making customers worry-free". The Mandeno Pump Industry continues to innovate and improve system service capabilities. It is committed to providing customers with safe, stable, and efficient pump products and services, exceeding customer expectations, and enhancing customer value!

Certificate Of Honor
  • EAC TR CU Certification
  • EAC TP TC Certification
  • Five-Star After-Sales Service Company
  • Five-Star After-Sales Service Company
  • AAA Level Honest Supplier
  • AAA Level Enterprise Credit Certification
News
Message Feedback
Bimetallic Composite Wear-Resistant Steel Industry knowledge

How does the impact resistance of Bimetallic Composite Wear-Resistant Steel affect its range of applications?
In modern industrial applications, impact resistance is a core advantage of Bimetallic Composite Wear-Resistant Steel, a property that significantly expands its range of applications, especially in environments where high wear and impact resistance are required. As manufacturers of Bimetallic Composite Wear-Resistant Steel, we understand that material performance is critical to the reliability and efficiency of the final product. Our company's strong R&D capabilities and advanced production equipment are dedicated to providing the highest quality wear-resistant solutions, which is one of the reasons why we stand out in the production of Bimetallic Composite Wear-Resistant Steel.

In the production process of our company, Bimetallic Composite Wear-Resistant Steel significantly improves the impact resistance of the material through innovative bimetallic composite technology. The inner layer of this material is made of a high-chromium alloy and the outer layer is a strong steel tube, which is firmly bonded through advanced casting and heat treatment processes. This process not only improves the material's wear resistance, but also ensures its stability when encountering high impact forces. Our production facilities include a large number of advanced metal cutting equipment and testing instruments. The precise operation of these equipment ensures that every performance of the material meets strict quality standards.

Bimetallic Composite Wear-Resistant Steel has demonstrated excellent impact resistance when used in high-impact environments such as thermal power plants, metallurgical industries, and mining. As a company with rich experience and strong technical support, our materials can withstand extreme working conditions, which not only reduces the frequency of maintenance and replacement, but also effectively reduces operating costs. This improvement in impact resistance has allowed us to achieve remarkable results in applications in petrochemical, power plants, mining and other fields, providing customers with more efficient and economical solutions.

Our company ensures consistent high performance in every batch of Bimetallic Composite Wear-Resistant Steel through constant technological innovation and strict quality control. Our production facilities are equipped with computer-aided design systems and large-scale specialized processing equipment. These advanced equipment help us achieve higher precision and reliability in our material design and production processes. In addition, we have several experienced technicians in our team, and their professional knowledge and skills provide a solid guarantee for the high quality of our materials.

In the future, we will continue to focus on innovation in material technology to further enhance the performance of Bimetallic Composite Wear-Resistant Steel to meet changing industrial needs. Our goal is to continue to expand the application fields of materials by continuously optimizing the impact resistance of materials, ensuring that customers can obtain the best performance and benefits under various harsh working conditions. The strength and commitment of Beloni (Jiangsu) Pump Manufacturing Co., Ltd. provide our customers with stable and reliable products and promote the development and application of industry technology.
