Ceramic Lined Composite Pipe OEM/ODM

Home / Products / Coal Power Series / Ceramic Lined Composite Pipe

Ceramic Lined Composite Pipe Manufacturers

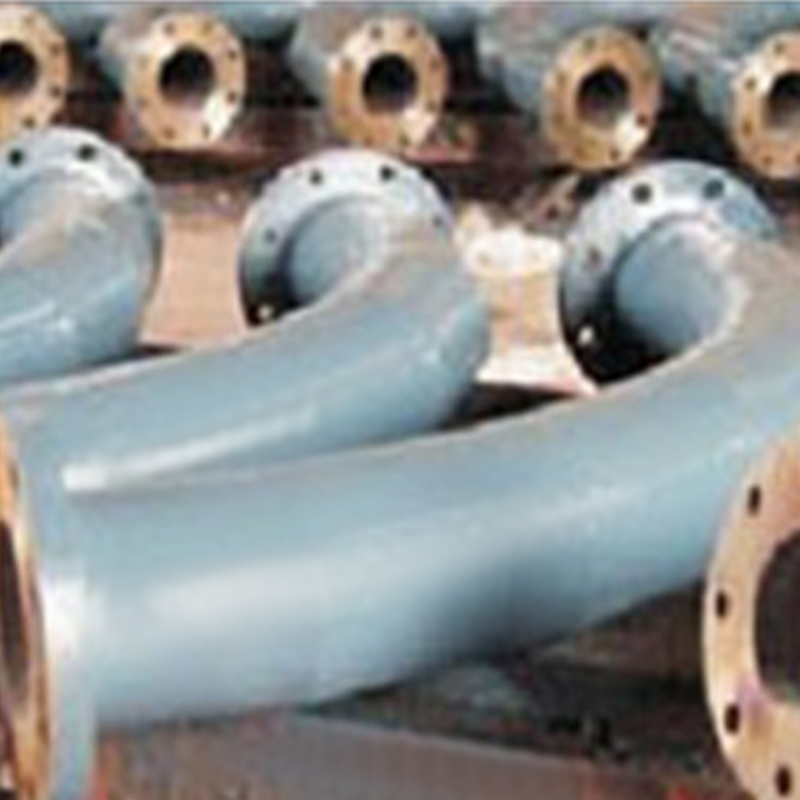

  • Bend
    Bend

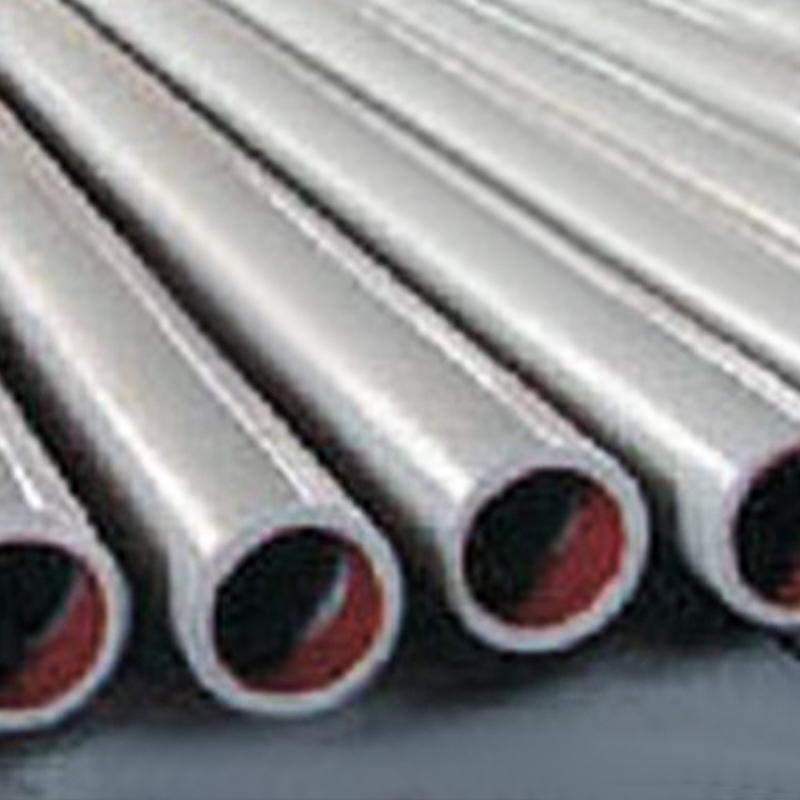

  • Straight Pipe
    Straight Pipe

The ceramic-lined composite pipe is formed by centrifugal SHS technology and compounded on the inner wall of the steel pipe at 2000℃. It can be made into straight pipes, elbows, tees, etc. This product has the following features: 1. Good wear resistance, Mohs hardness above 90°. 2. Excellent wear resistance and corrosion resistance, can resist corrosion from organic acids and solvent-corrosive gases. 3. Good temperature resistance, can operate for a long time in the temperature range of -50~600℃. 4. Low engineering cost and convenient construction. 5. Can be welded, flanged, or Vickers, Rockwell connection. 6. Manufacturing standard: DLT680-1999.

Physical and mechanical properties of composite pipe with ceramic- liner

Material Hardness

Crushing strength

 Surface Quality Ceramic layer density Compressive shear strength Resistance to mechanical shock Thermal shock resistance
Cahonstel Steel pipe 149 411
Ceramic-lined composite steel pipe 1100-1400 300-350 smooth 3.85-3.9 15-20 15 900

Corrosion resistance (stainless steel test according to standards) of composite pipe with ceramic liner

Material 10%HCL  g/m2. h 10%H2SO4  g/m2. h 30%  g/m2. h 30%NaOH  g/m2. h
1Cr18NI9TI 0.1-1 3-4 0.1 0.1
Porcelain composite steel 0.08-0.1 0.147 0.028 0

Acid resistance (by acid-resistances amic standard) of composite pipe with ceramic liner

Material 10%HCL+10%H2SO4+10%HNO2 heated at 90C for 5 hours
Acid-resistant ceramics 80%
Porcelain composite steel 96-98%

The abrasion resistance of composite pipe with o8ramic liner

Sandblasting comparison test 30% SIO2Mud erosion comparison test
Material Volume reduction Material Volume reduction
97% alumina tube 0.0025 No. 45 copper 25
Porcelain composite steel 0.0022 Porcelain composite steel 3

Beloni (Jiangsu) Pump Manufacturing Co., Ltd

  • 15+

    Years Industry Experience

  • 5000+

    Factory Area

  • 100+

    Skillful Employees

  • 30+

    Product Category

The company is located at No. 18, Jinqiuzhu Road, Xinfeng, Shengci Town, Jingjiang City, in the lower reaches of the Yangtze River. Pump products include magnetic pumps, axial flow pumps, horizontal self-priming pumps, fluorine-lined centrifugal pumps, chemical desulfurization pumps, horizontal centrifugal pumps, bottom pumps, double-suction pumps, slurry pumps, rotor pumps, acid-resistant and wear-resistant pumps, chemical centrifugal pumps, wear-resistant and corrosion-resistant mortar pumps, seal-free fully automatic self-priming pumps, petrochemical process pumps, high-pressure oil pumps, vertical pipeline pumps, screw pumps and other series. Main products of metallurgical equipment: rare earth heat-resistant steel series, rare earth wear-resistant alloy steel series, bimetallic composite wear-resistant steel series, wear-resistant ceramic patch series, wear-resistant arc baffle series, medium-speed coal mill series, stabilizing roller, sinking roller, furnace roller, guide plate, step-type heating furnace series.

Beloni Pump Industry currently has 80 employees, including 12 professional and technical personnel, 6 inspectors, more than 100 sets of various metal cutting equipment, computer CAD-aided design, advanced detection and measurement devices, large-scale special processing equipment, large-scale lifting equipment, etc. The company has the production conditions from design, casting, machining, assembly, and testing. The company has successively obtained ISO9001 quality system certification, ISO14001 environmental management system certification, ISO45001 occupational health and safety management system, and multiple AAA certifications in the pump and valve industry.

At present, the company's products have been widely used in petrochemical, coal mines, power plants, steel mills, agricultural irrigation and drainage, industrial water supply and drainage, municipal construction, sewage treatment, and other industries.

As China Ceramic Lined Composite Pipe Manufacturers and Ceramic Lined Composite Pipe Suppliers, the company provides industrial fluid safety delivery solutions for the global and domestic markets. It is a technology-based enterprise integrating chemical pump design, research and development, manufacturing, sales, and service. The company's quality-oriented and innovation-led business philosophy has been recognized by various users in the domestic and foreign markets; the company adheres to the core value of "making customers worry-free". The Mandeno Pump Industry continues to innovate and improve system service capabilities. It is committed to providing customers with safe, stable, and efficient pump products and services, exceeding customer expectations, and enhancing customer value!

Certificate Of Honor
  • EAC TR CU Certification
  • EAC TP TC Certification
  • Five-Star After-Sales Service Company
  • Five-Star After-Sales Service Company
  • AAA Level Honest Supplier
  • AAA Level Enterprise Credit Certification
News
Message Feedback
Ceramic Lined Composite Pipe Industry knowledge

What are the advantages of Ceramic Lined Composite Pipe during construction?
As a technology-based enterprise with extensive experience in safe transportation solutions for industrial fluids, our Ceramic Lined Composite Pipe demonstrates remarkable convenience and efficiency in installation and construction.

Ceramic Lined Composite Pipe uses advanced centrifugal SHS technology to compound ceramic materials on the inner wall of the steel pipe at a high temperature of 2000°C. This process ensures the excellent performance of the pipe under extreme working conditions. Our company has first-class equipment and technical teams that can apply this high-temperature composite technology to pipeline production, allowing it to show many advantages during the construction process. Specifically, the construction advantages of this kind of pipeline are first reflected in its highly modular design. As an innovative product of Beloni (Jiangsu) Pump Manufacturing Co., Ltd., the ceramic lined composite pipes we provide can be made into various shapes such as straight pipes, elbows, tees, etc. This flexible design makes the assembly of the pipeline system becomes easier. Whether running straight lines or complex piping layouts, our piping assemblies adapt to a variety of construction needs, reducing the complexity of on-site cutting and processing.

In addition, the connection methods of the pipeline are also diverse, including welding, flange connection, Vickers and Rockwell connection, etc. Such diversity allows construction personnel to choose the most suitable connection method according to site conditions, improving the flexibility and convenience of construction. Beloni (Jiangsu) Pump Manufacturing Co., Ltd., as a professional chemical pump design, R&D, manufacturing and sales company, is well aware of the impact of connection quality on the stability of the pipeline system. Therefore, our pipelines are designed with the reliability of various connection methods in mind to ensure stable connections during construction.

During the construction process, Ceramic Lined Composite Pipe’s portability and precise cutting capabilities also greatly improved installation efficiency. Handling and installation are made easier due to the precise design of ceramic lined composite pipes and the effective control of pipe weight. Our company's equipment and technology ensure the precision of pipe cutting, allowing construction workers to install pipes quickly and accurately. This efficient construction method not only shortens the project cycle, but also reduces the burden on labor and equipment, thereby reducing construction costs.

More importantly, the pipe's excellent temperature resistance and corrosion resistance enable it to operate for a long time under various extreme environmental conditions. Through strict manufacturing standards and quality control, our company ensures that ceramic-lined composite pipes operate stably in the temperature range of -50~600℃. Such performance ensures the reliability of pipelines in high-temperature, highly corrosive working environments. Construction workers do not need to worry too much about pipeline problems caused by environmental changes, which further improves the safety and reliability of construction.
